Product Introduction

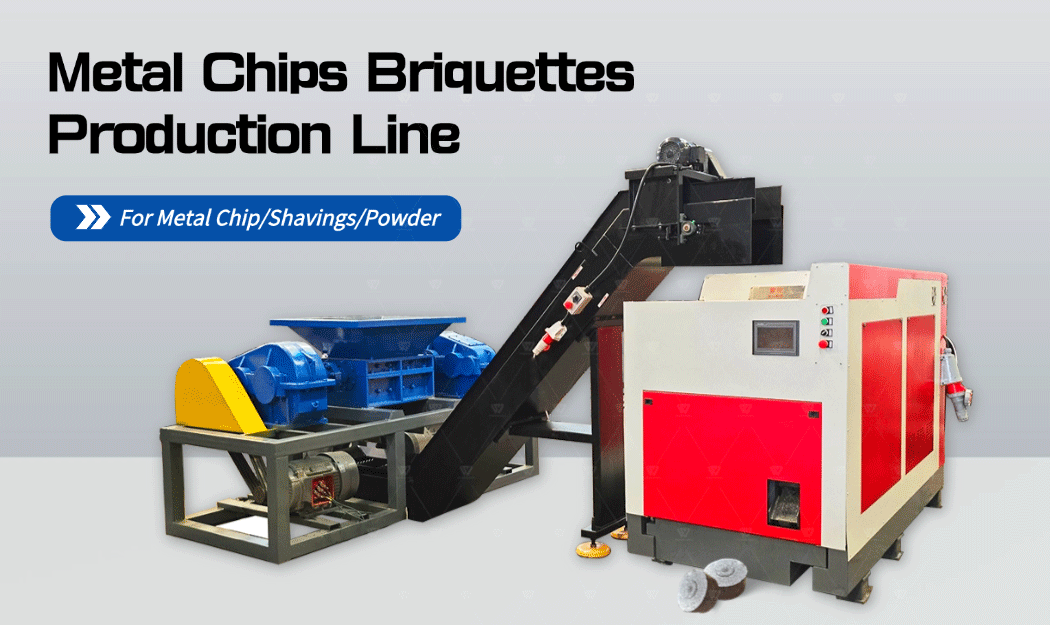

This metal chip briquetting production line consists of three core components: ​​shredder, conveyor system, and metal chip briquetting press​​, specifically designed for efficient processing of metal processing waste (steel, aluminum, copper, cast iron, etc.). Through an integrated "crushing-conveying-high-pressure compaction" process, it transforms loose metal scraps into high-density briquettes, significantly improving recycling value while reducing transportation and smelting costs.

​​Core Equipment Functions & Advantages​​

 1.Metal Chip Shredder (Pre-Crusher)​​

​​Function​​: Pre-crushes long, tangled metal chips (e.g., lathe spiral chips) to prevent clogging in the briquetting equipment.

​​Advantages​​:

​​High-strength alloy blades​​ – Wear-resistant, capable of processing hard metals (e.g., stainless steel).

​​Low-speed, high-torque design​​ – Smooth operation with noise levels below ​​75dB​​.

​​Adjustable output size (10-50mm)​​ – Optimized for downstream briquetting requirements.

​​2. Conveyor System​​

​​Function​​: Automatically transports metal chips, connecting the shredder and briquetting press to enable continuous production.

​​Advantages​​:

​​Magnetic Conveyor (Optional)​​: Equipped with a permanent magnetic roller to separate ferrous and non-ferrous metals, improving material purity.

​​Leak-Proof Design​​: Enclosed belt or chain-plate structure prevents chip spillage.

​​Variable Frequency Speed Control​​: Adjusts conveying speed to match upstream/downstream equipment capacity for flexible operation.

3. Metal Chip Briquetting Press​​

​​Function​​: Compresses metal chips into high-density briquettes (disc/cylindrical shape) through high-pressure compaction.

​​Key Advantages​​:

​​High-Pressure Compaction​​: Hydraulic system with 100-500 tons of force, producing briquettes with density up to 5-7g/cm³ (for steel chips).

​​Low Oxidation Rate​​: Compression reduces surface area, decreasing melting loss by 10%-15%.

​​Intelligent Control​​: PLC automatically adjusts pressure and dwell time, featuring a user-friendly touchscreen interface.

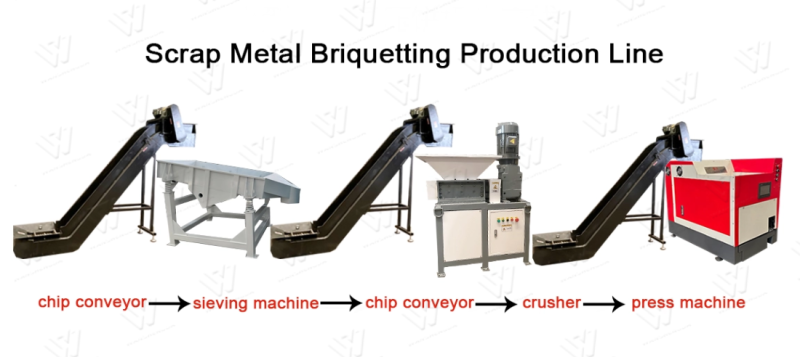

​​Production Line Workflow​​

​​Crushing Stage​​: Metal chips are shredded into uniform particles by the pre-crusher.

​​Conveying & Sorting​​: The conveyor transports materials to the briquetting press, with optional magnetic separation to remove impurities.

​​High-Pressure Briquetting​​: The briquetting press compacts chips into dense blocks, followed by automatic discharge and stacking

On-site Collaboration Photos with Customers

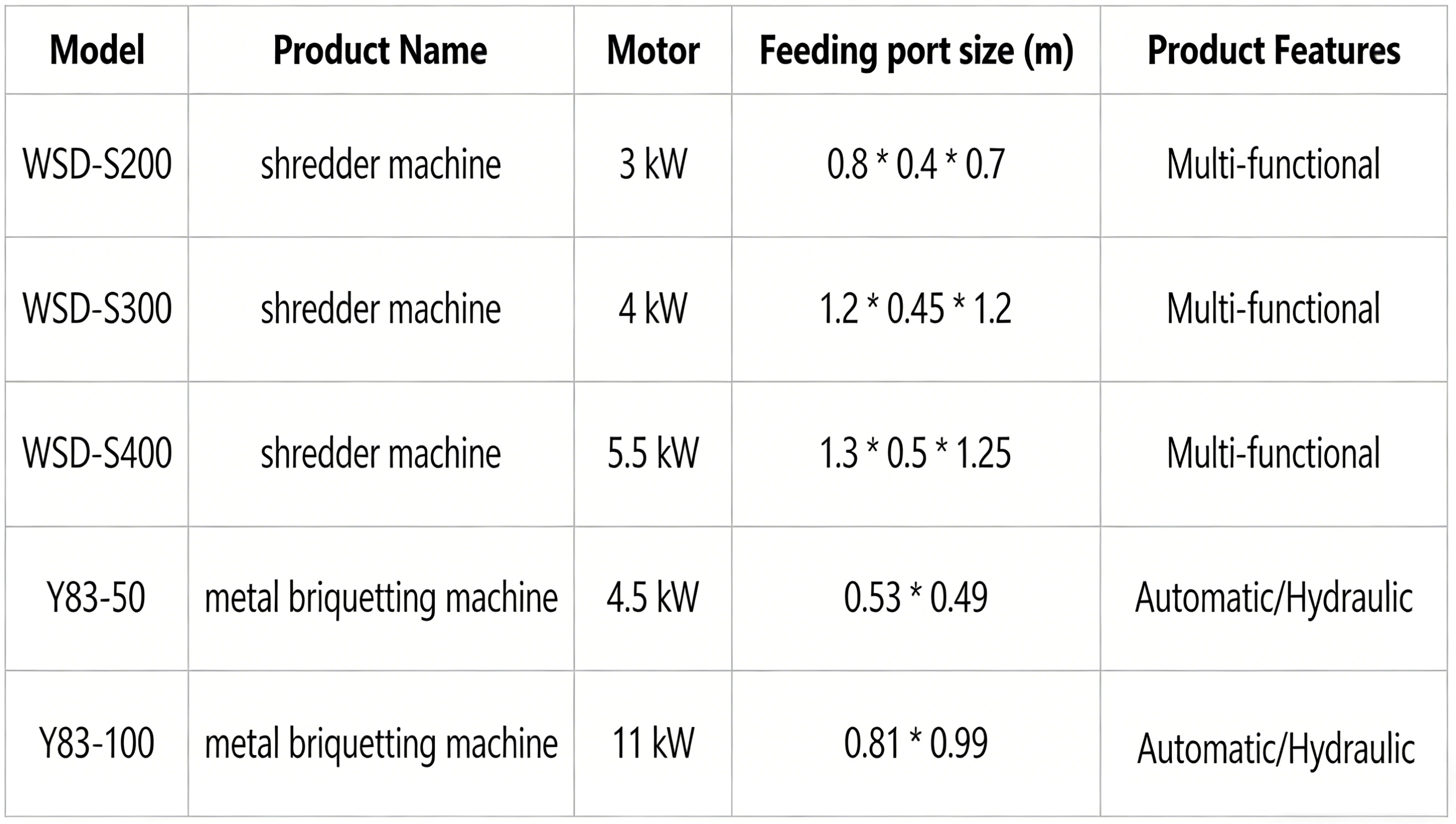

Technical Specifications
