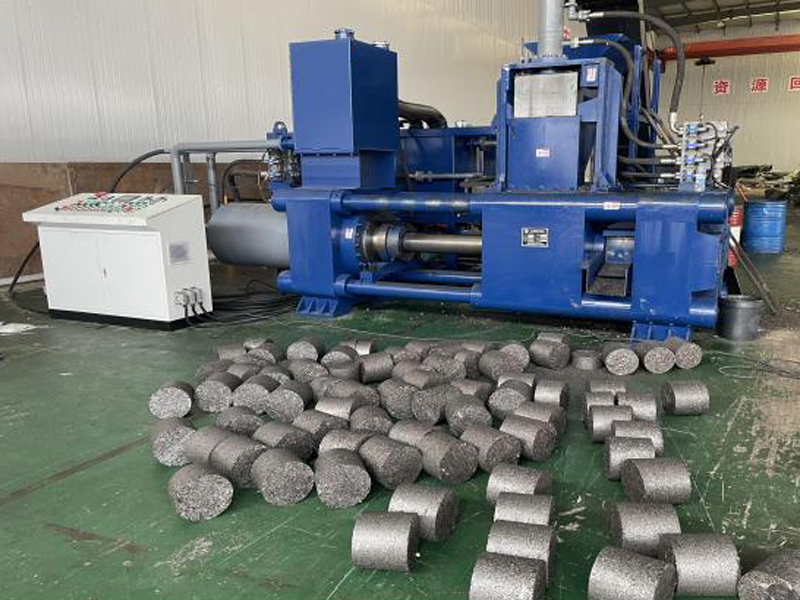

Horizontal Metal Chip Briquetting Machine

Product Introduction

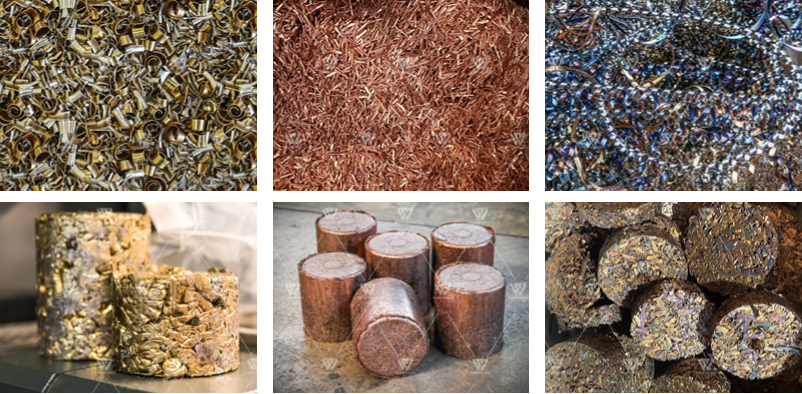

The WS_W series metal chip briquetting machine is designed to cold-press various metal scraps, powders, or granular materials—

such as steel, cast iron chips, copper chips, aluminum chips, crushed materials, sponge iron, steel turnings, iron ore powder, silicon

powder, slag powder, and other non-ferrous metals—into cylindrical briquettes weighing 30–180 kg without any additives. It is

suitable for high-volume processing in enterprises generating large amounts of metal chips, including large foundries, wind power

component foundries, and copper/aluminum product manufacturers. The machine is equipped with a storage hopper and a conveyor.

The horizontal metal chip briquetting machine is primarily used in factories with high volumes of metal waste processing. Its

horizontal structure requires lower workshop ceiling height and effectively addresses difficulties in handling and feeding various

metal chips.

Product Advantages

1.The electrical system adopts an imported PLC-based fully automatic control system, offering strong anti-interference capability

and low failure rate.

2.The machine body is made of high-quality cast steel, providing high strength and excellent stability, ensuring lifelong use without

deformation.

3.Equipped with a hydraulic transmission system, high-integration professional valve blocks, and oversized flow passages, the system

minimizes pressure loss and eliminates leakage points.

4.A pre-unloading device is designed into the system, thoroughly eliminating hydraulic shock.

5.The use of cartridge valves, electrohydraulic proportional valves, and unique circuit design ensures a flawless hydraulic system.

Even under long-term heavy-load conditions, the system remains fully responsive.

6.The machine features an advanced rapid-action mechanism, with tandem cylinders that increase speed and production efficiency.

7.Equipped with an automatic screw feeder and chain-type automatic discharger, it reduces labor intensity and production costs.

8.The horizontal structure requires low workshop ceiling height and effectively resolves feeding difficulties for various metal chips.

Technical Parameters:​
