Product Introduction

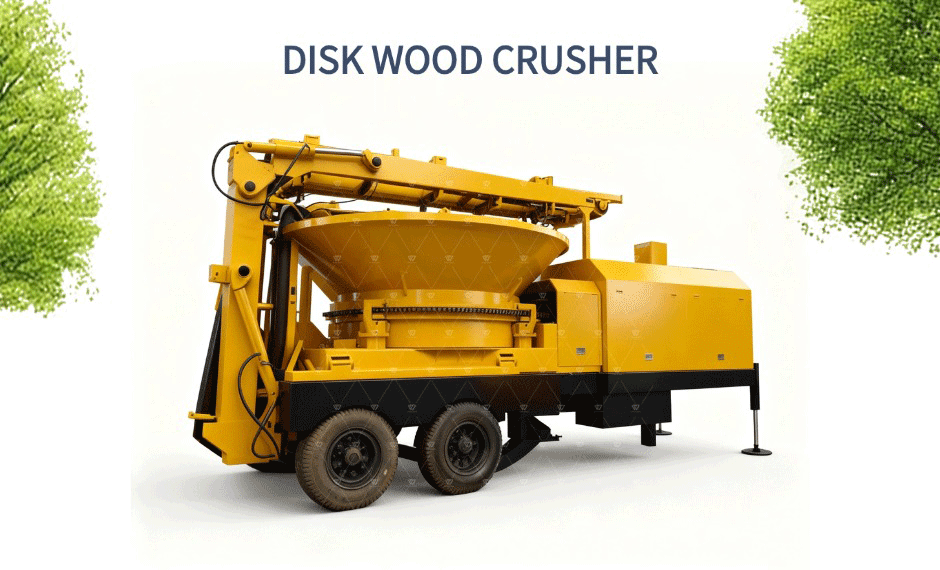

The disc crusher is a large-scale wood crushing equipment developed and produced by our company by introducing advanced technologies both at home and abroad. The structure of the disc crusher mainly includes the frame, casing, power system, hydraulic system, electrical system, and the rotating material box driven by the material box drive device. The disc crushing opening is over two meters long, with a higher output than the comprehensive wood crusher. Moreover, it does not require a feeding conveyor; it can directly feed by the grab and discharge by folding hydraulic pressure, making outdoor mobile operations more convenient. The rotor rotates under the drive of the rotor drive device. The rotor is located below the rotating material box, and the feed port is relatively offset from the center of the feed hopper.

Performance characteristics

The application of advanced technology, the offset feeding port combined with the feeding teeth installed on the inner wall of the feeding hopper, plays an auxiliary feeding role. Moreover, this equipment adopts frequency conversion technology. Once the rotor load is too large, the feeding hopper will rotate in the opposite direction, so there is no need to worry about material jamming with this equipment.

2. This equipment has a wide range of applications and can be used for crushing large-diameter materials such as tree roots and old furniture, as well as for crushing scraps of board skins.

3. Convenient for maintenance and repair. The hydraulic material box flipping device can achieve large-angle flipping when this machine needs maintenance and repair, making maintenance and repair very convenient and reducing the use of manual labor.

The disc crusher is widely used in the material preparation section of small and medium-sized particleboard and fiberboard production enterprises. The miscellaneous wood crusher can also be used by individual households for the production of commercial wood chips. The disc crusher is welded with high-strength steel plates and uses a knife roller cutting method. This machine replaces traditional wood splitters and chippers, directly cutting the entire tree stump into qualified biomass raw materials, saving processes and reducing costs. It is an ideal biomass material preparation equipment.

The disc crusher is a professional crushing mechanical equipment for crushing various tree roots, tree stumps, wooden stumps and tree lumps. The diameter of the materials it can crush is 160 centimeters. The disc crusher is a new type of ideal mechanical equipment for the previous production of wood powder. It can process pine wood, miscellaneous wood, poplar wood, fir wood and raw bamboo.

When the disc crusher is in operation, the motor drives the rotor to rotate at high speed. At the same time, the feeding hopper also rotates slowly under the drive of the motor. Materials are fed into the feeding hopper by the grab. As the hopper rotates, the feeding teeth on the inner wall will evenly push the materials onto the rotor. The high-speed rotating rotor of the disc crusher comes into contact with the material. The material is initially crushed through the cutting and tearing of the blades on the rotor. The initially crushed material does not fall onto the screen in the crushing chamber under the action of its own weight and the impact force of the rotor. The material that meets the requirements will be discharged through the screen Those that do not meet the requirements will undergo secondary or even tertiary crushing processing in the crushing chamber until they meet the requirements.

The disc crusher is dual-purpose for oil and electricity, which is convenient for customers' production needs. The mobile tree root crusher is mainly used for crushing tree stumps, tree trunks and large tree roots. It features a compact and reasonable structure, easy operation, high production capacity and convenient maintenance. It is an indispensable equipment for biomass power generation in many power plants. The crushed tree roots and tree trunks can be directly sent to the power plant for power generation.

Technical parameters
